DRASS iAN-MULTI

DRASS iAN-MULTI

Using the latest advances in electronics alongside rigorous research and development, DRASS presents the new iAN-MULTI, the environmental analyser specifically tailored to the submarine/hyperbaric environment.

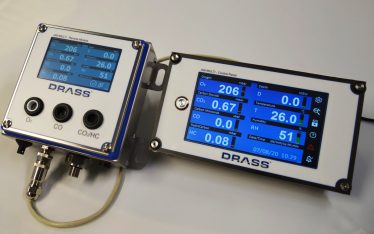

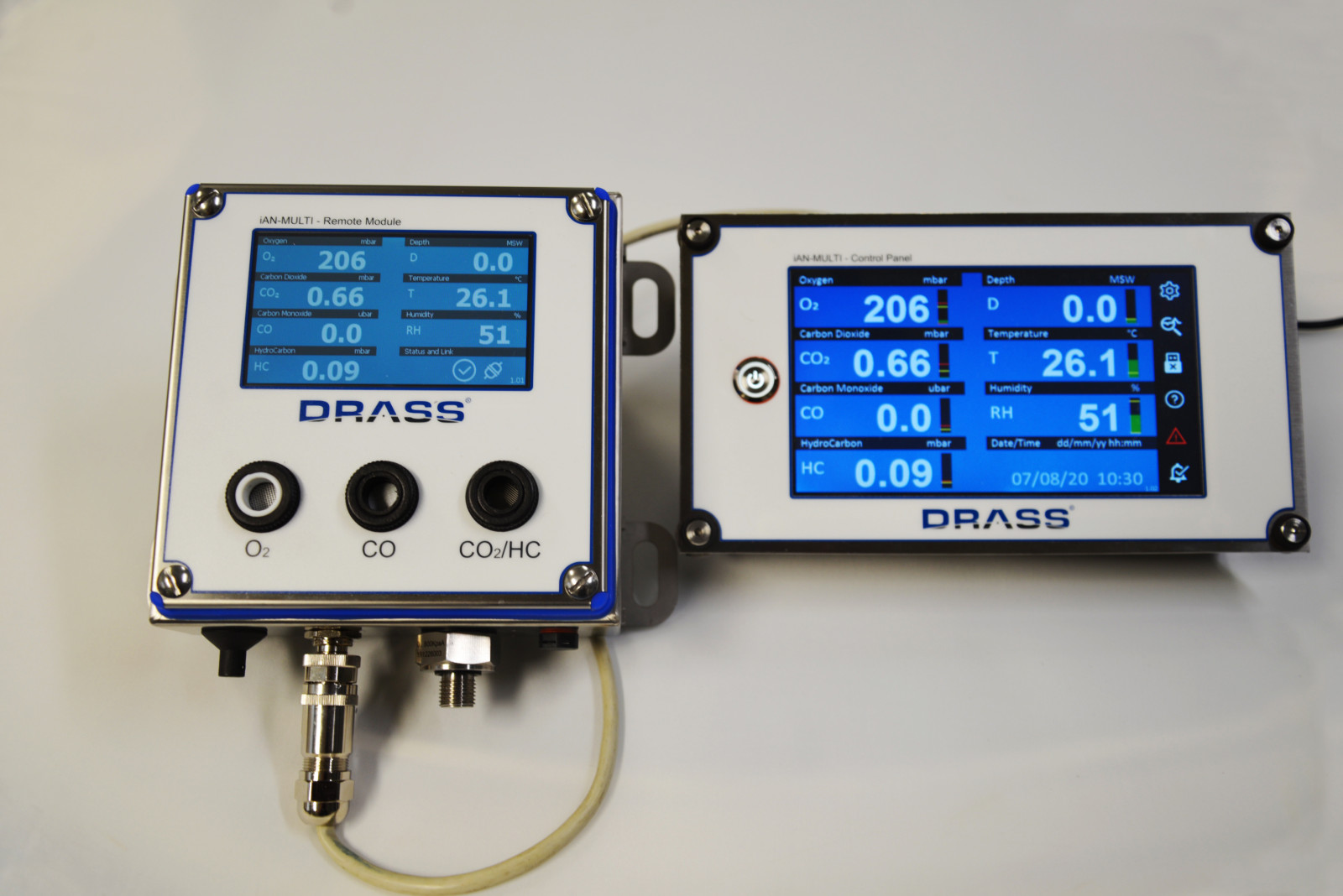

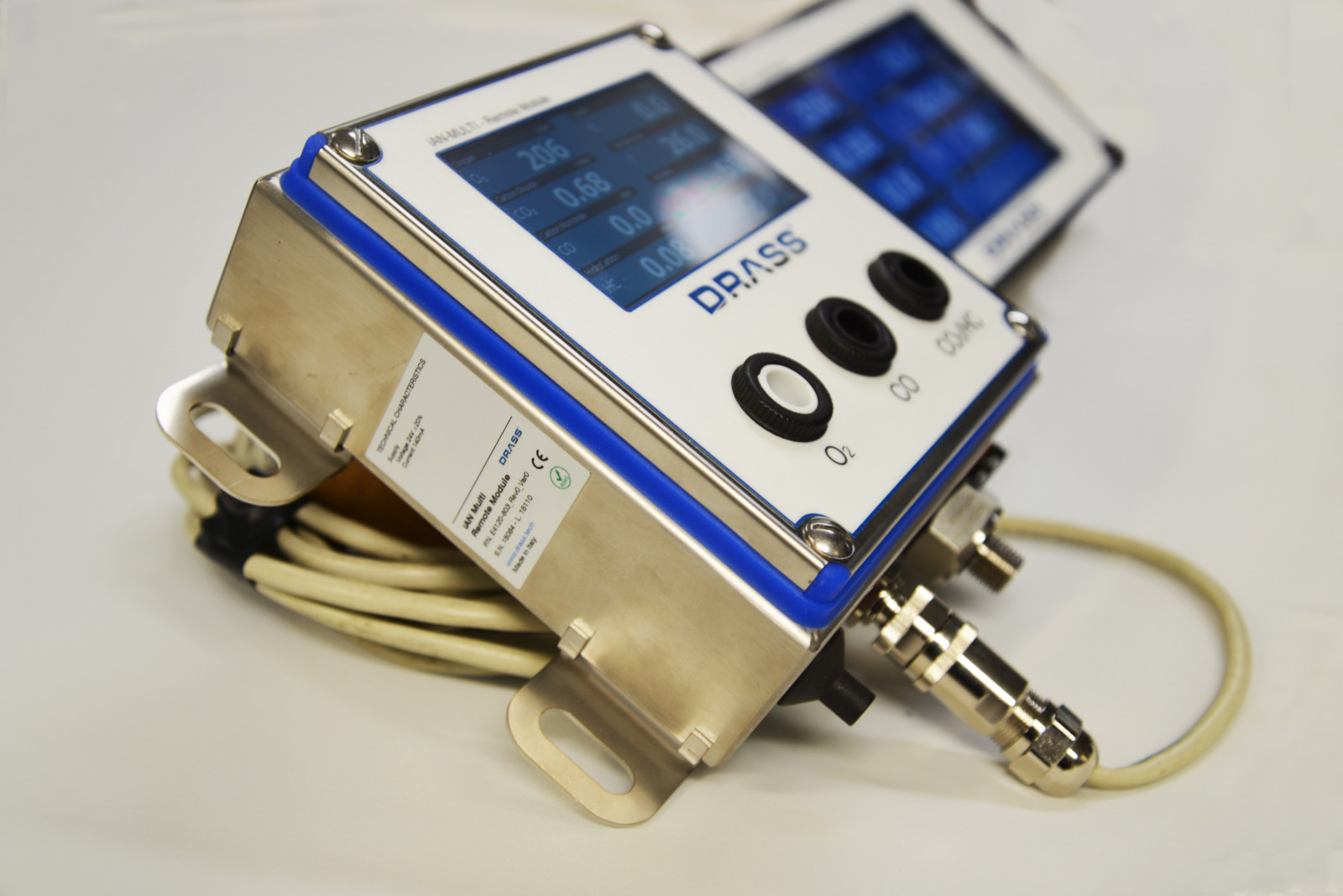

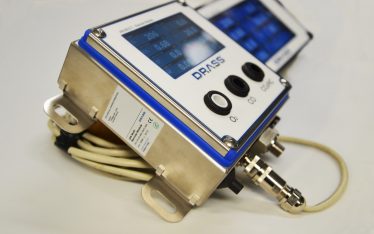

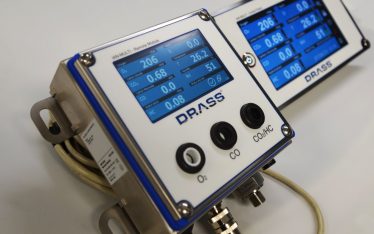

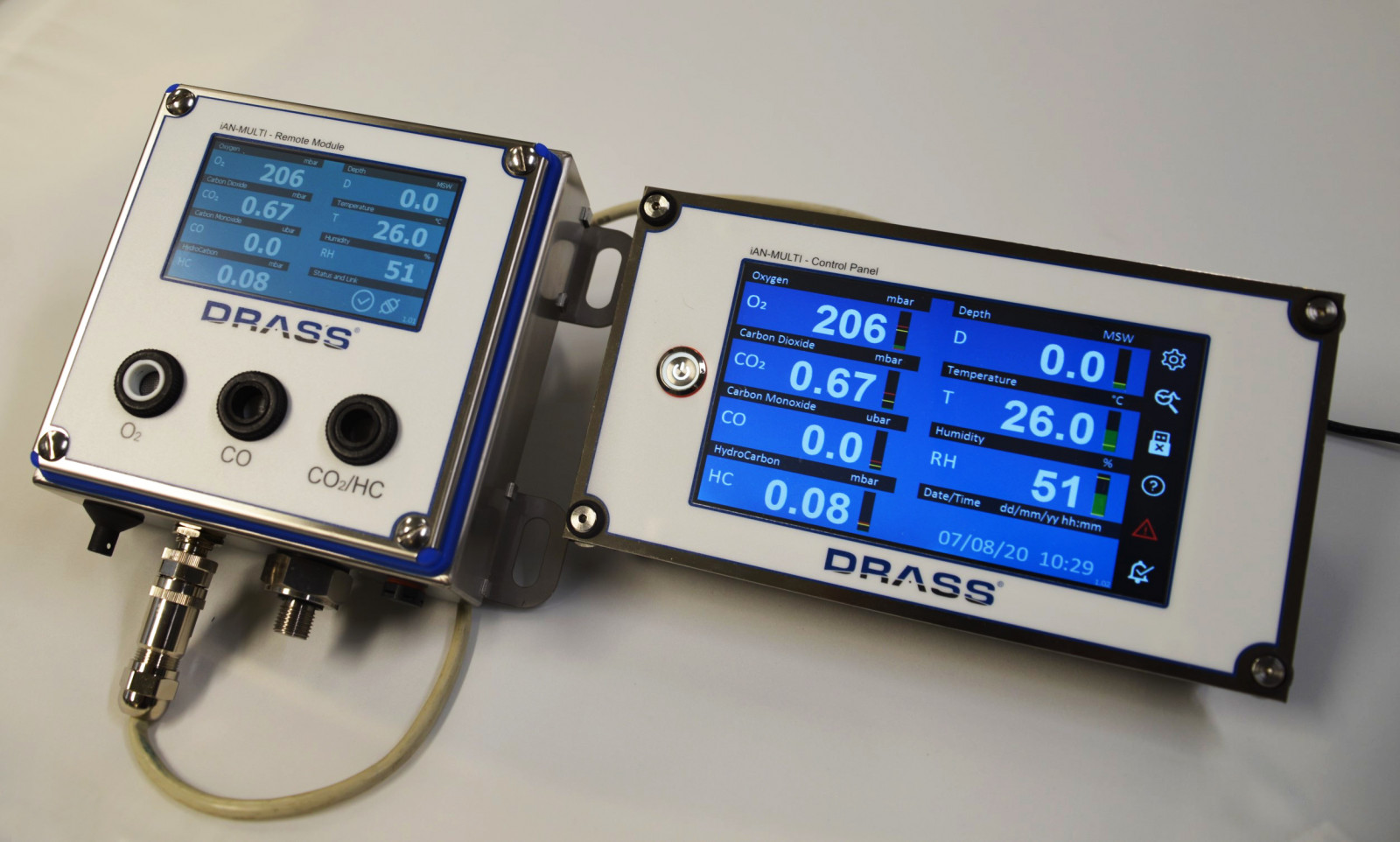

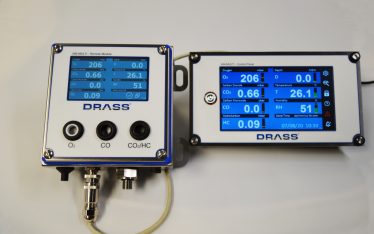

This advanced solution consists of a Control Panel and a Remote Module designed for hyperbaric use up to 5 bar, and connected via a single cable used for both power and data systems.

The iAN-MULTI can continuously monitor parameters for the following: Oxygen, Carbon Dioxide, Carbon Monoxide, HydroCarbons, Temperature, Relative Humidity, Depth. All measured parameters are shown on both the 7” color display Control Panel and on the Remote Module’s 4.3” color display.
User interaction is granted via the Control Panel’s reliable resistive touch interface which can be even used with gloves.
Measured parameters are saved into the internal memory and are exportable to a USB memory stick, making the iAN-MULTI a comprehensive black-box to record environmental values and monitor trends.
The Control Panel can be interfaced with external systems, such as a SCADA, via its RJ-45 port, and comes with a 4-20 mA output available for each parameter.
This innovative solution assures a protection degree of IP 56 in salt mist atmosphere and is CE marked and tested in accordance with IACS UR E10.
