With a faster turnaround, check the availability of our warehouse stock here.

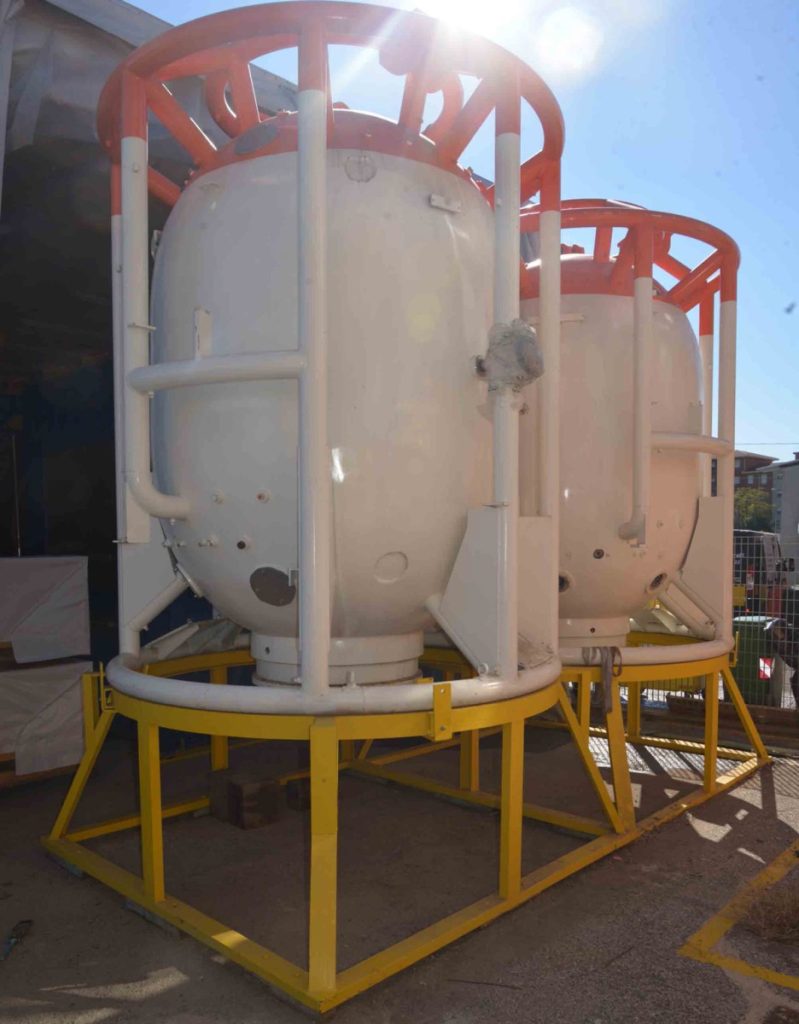

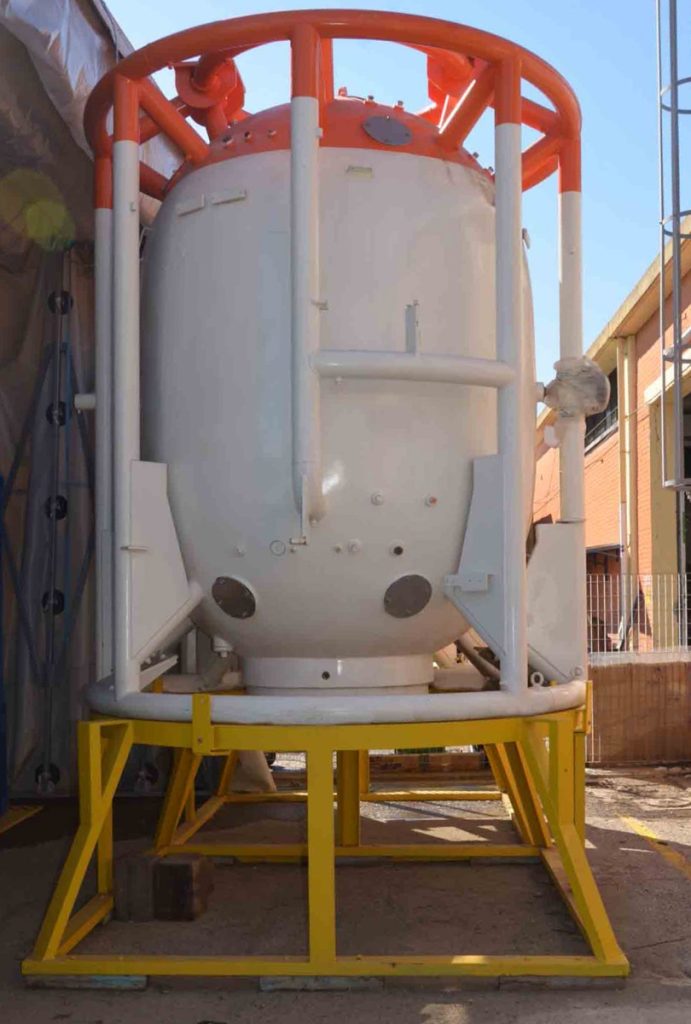

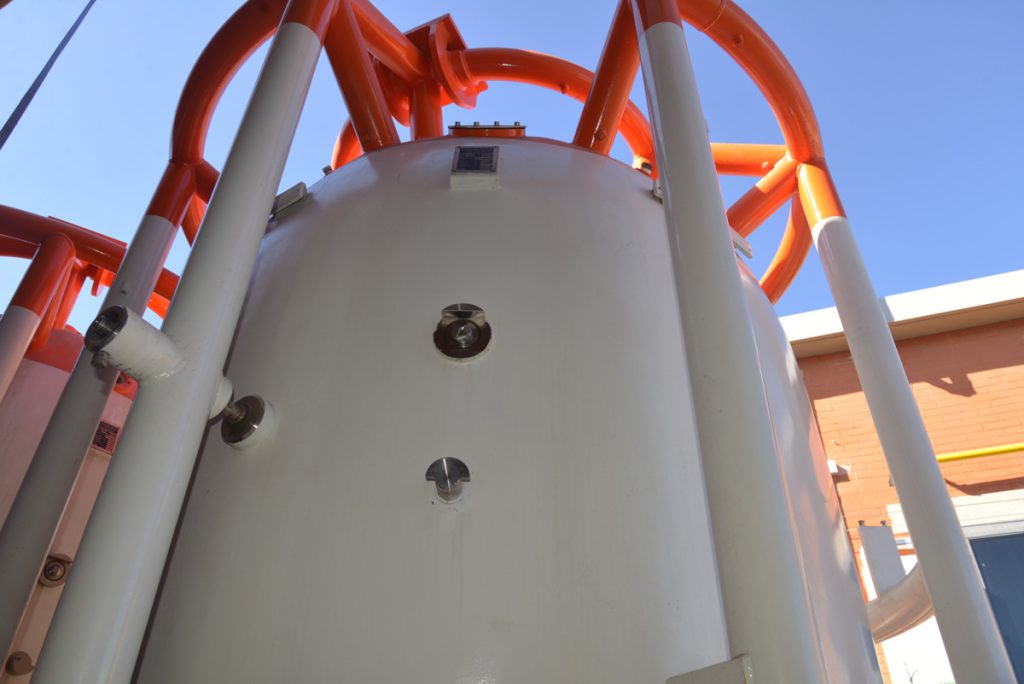

6M3 BOTTOM MATING DIVING BELL

PRESSURE VESSEL INSULATED AND PAINTED
The bottom mating 6m3 Diving Bell is the traditional Diving Bell successfully certified, delivered, installed and commissioned on several DSVs together with the standard Drass 100 Series Saturation Diving System. The main advantage is the reduced weight of the diving bell in air which results in minor solicitation for the superstructure of the vessel; the fact that the bell is buoyant makes the diving system independent from vessel crane for tertiary recovery means.The diving bell is sufficiently heavy in water to allow a smooth descent. A diving bell having an inner volume of 6m3 has optimized ergonomics for the operating divers.

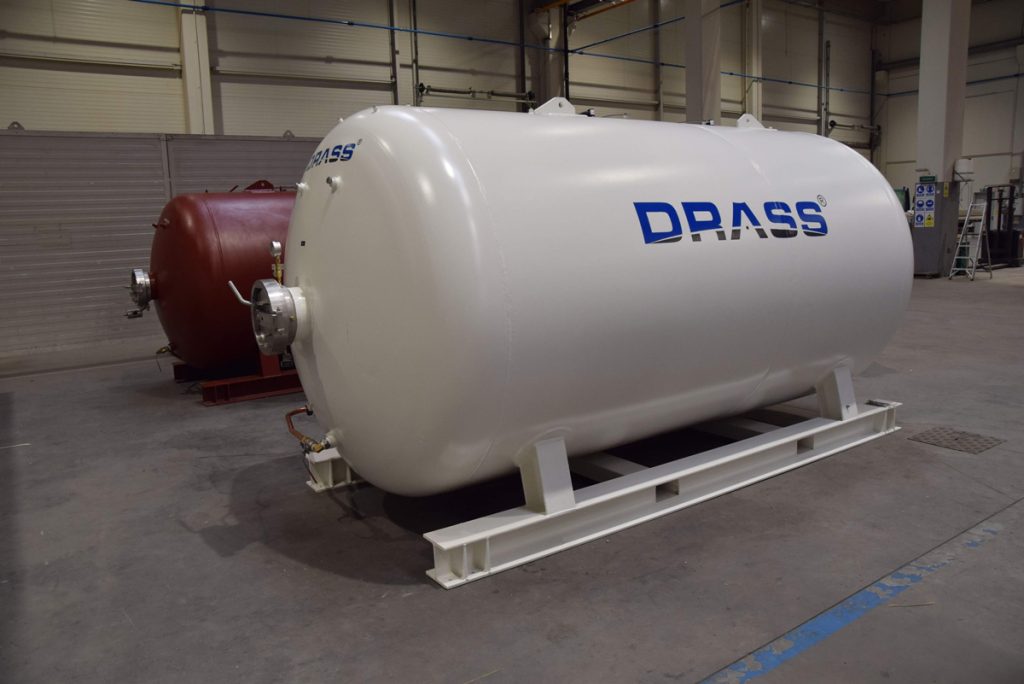

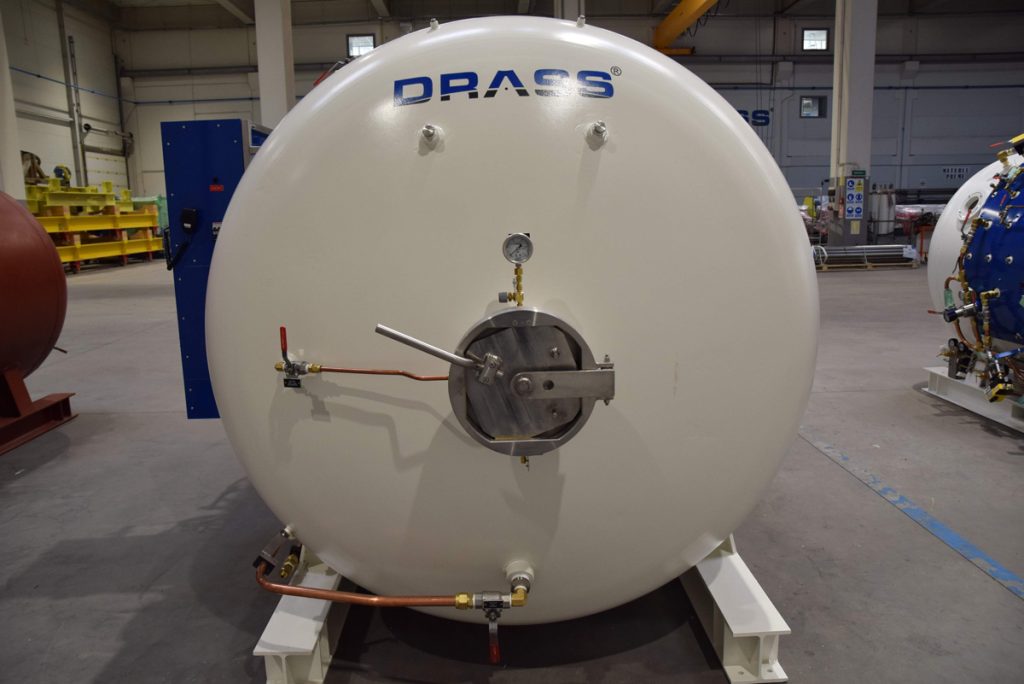

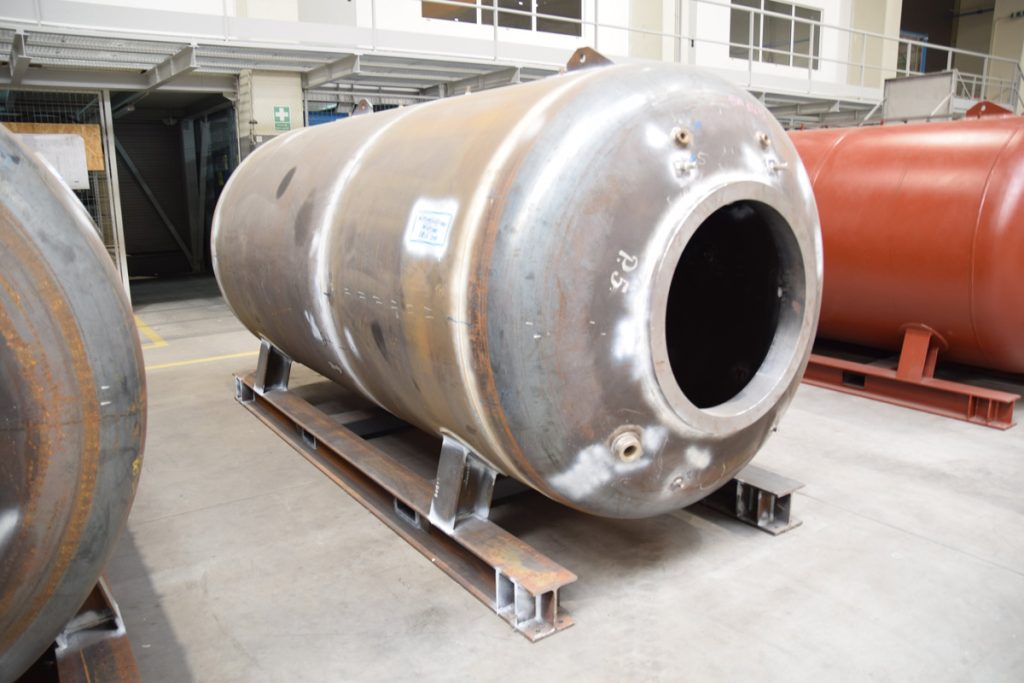

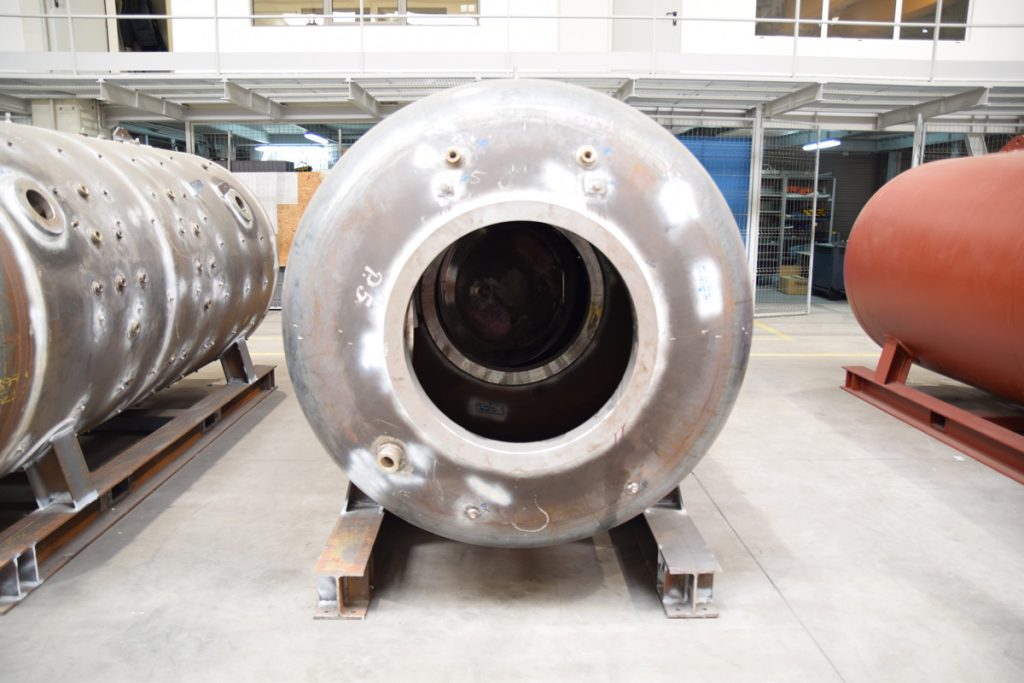

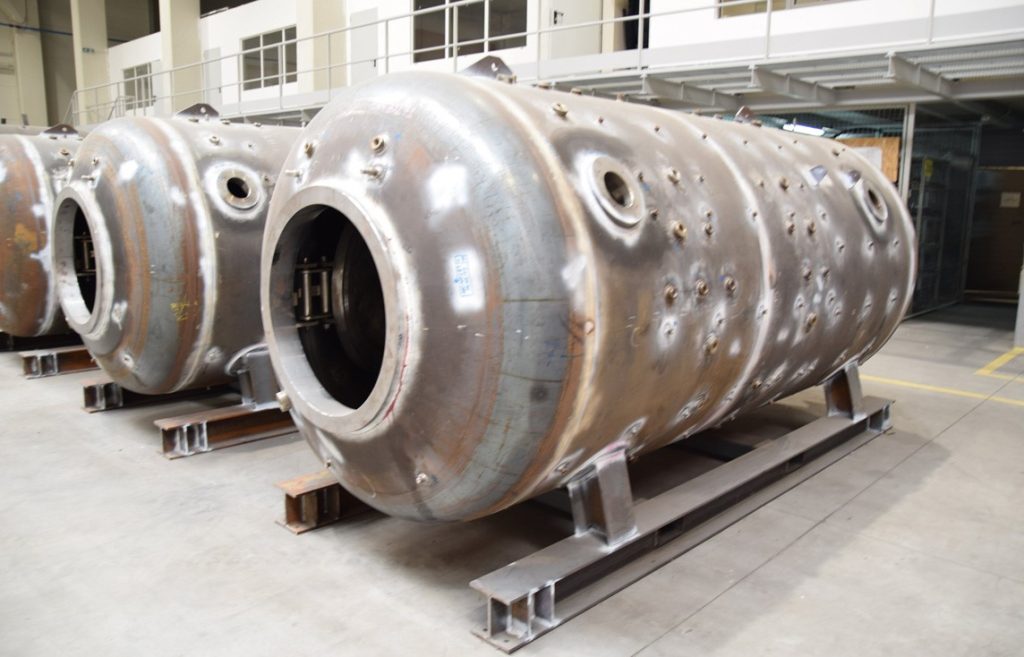

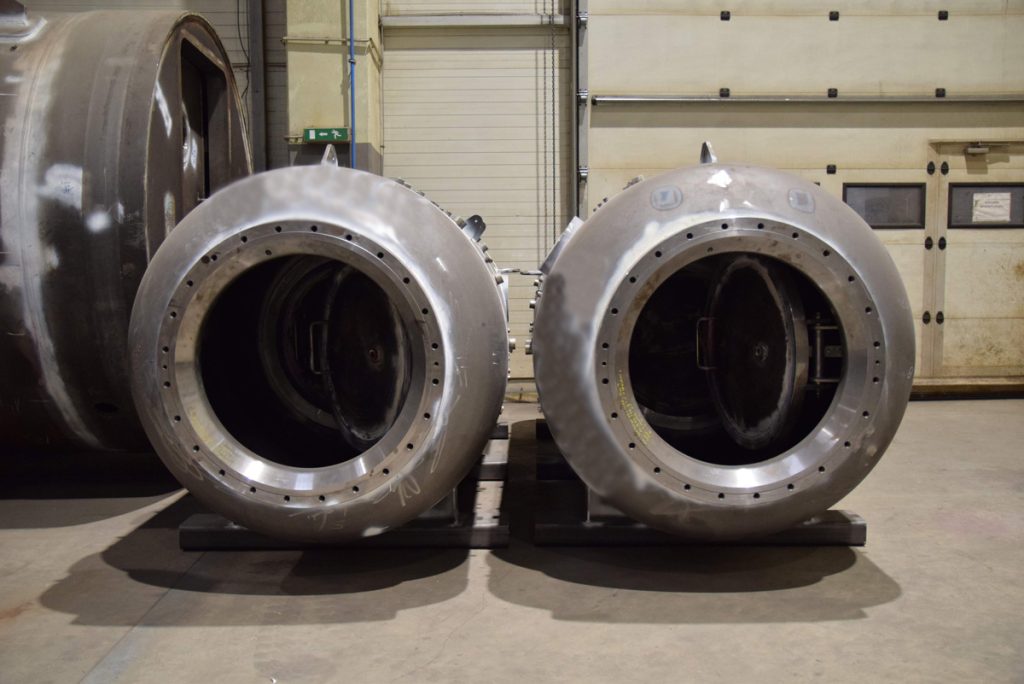

AIR DIVE CHAMBER 1600 MM PRESSURE VESSEL

Pressure vessel built with an internal diameter of 1600 mm. Hydrotest to be performed. Can be personalized and outfitted according to client needs, ready to be delivered in 6 months.

DRASS FAIRDIVE is a cylindrical twin-lock hyperbaric chamber. The main lock chamber accommodates a maximum of six (6) seated divers, or two (2) divers on beds. The entry lock chamber comes equipped with two foldable seats accommodating up to two (2) persons to medically assist and monitor the patient(s). Built with an internal diameter of 1600 mm (or 1850 mm as optional), FAIRDIVE comes equipped with all items required for standard operation as well as a complete set of optional accessories. FAIRDIVE is specifically designed to accommodate and medically treat surface-supplied divers, permitting an immediate recompression on site at 50 msw in the event of a diving accident.

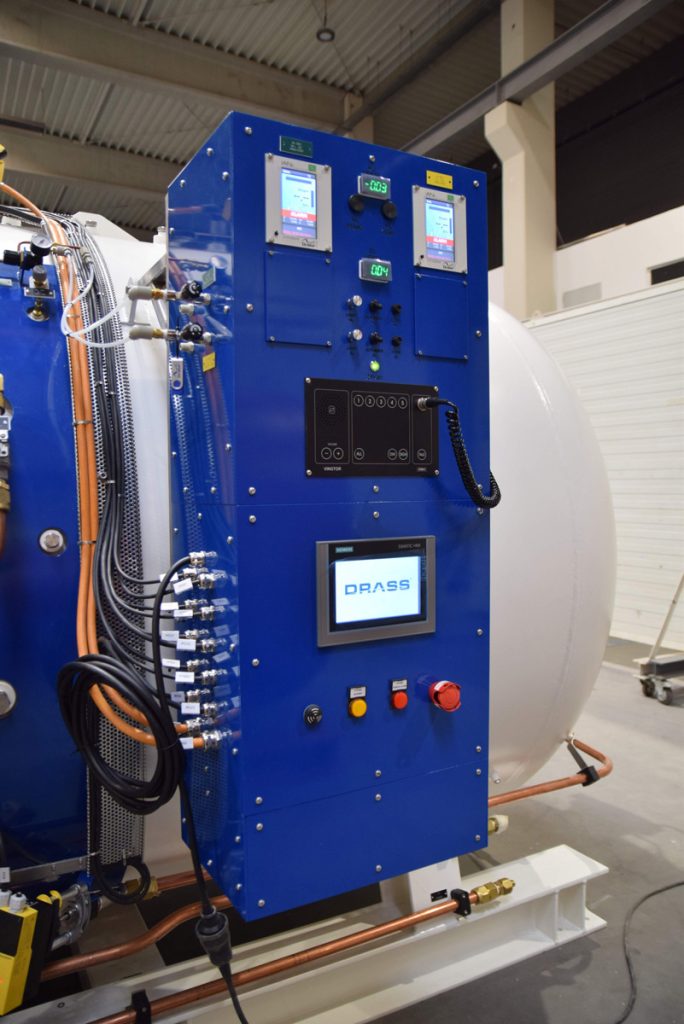

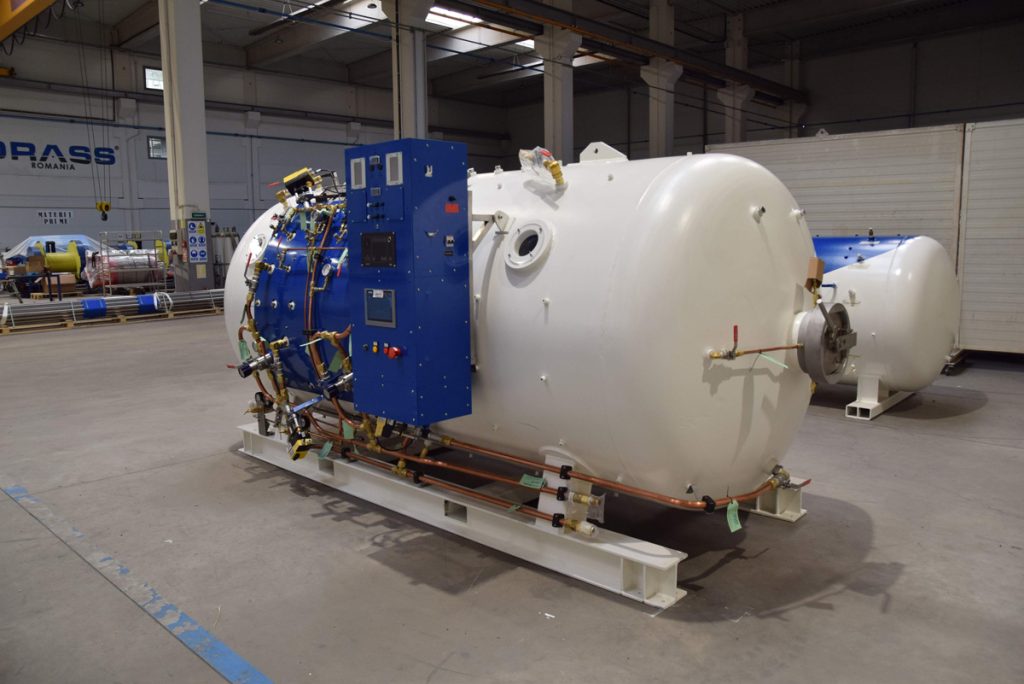

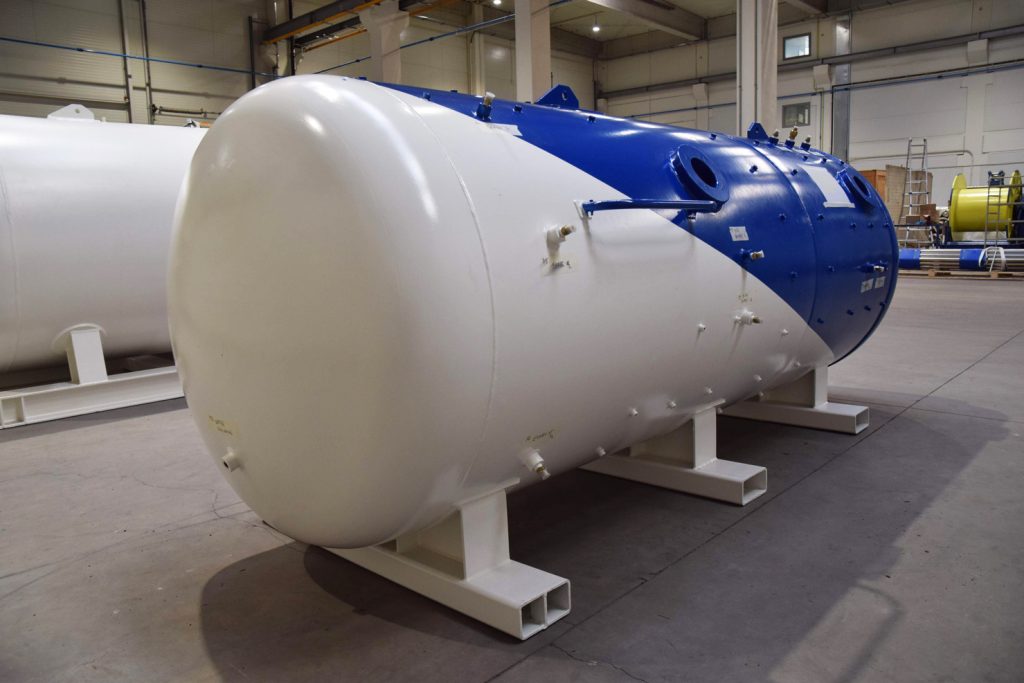

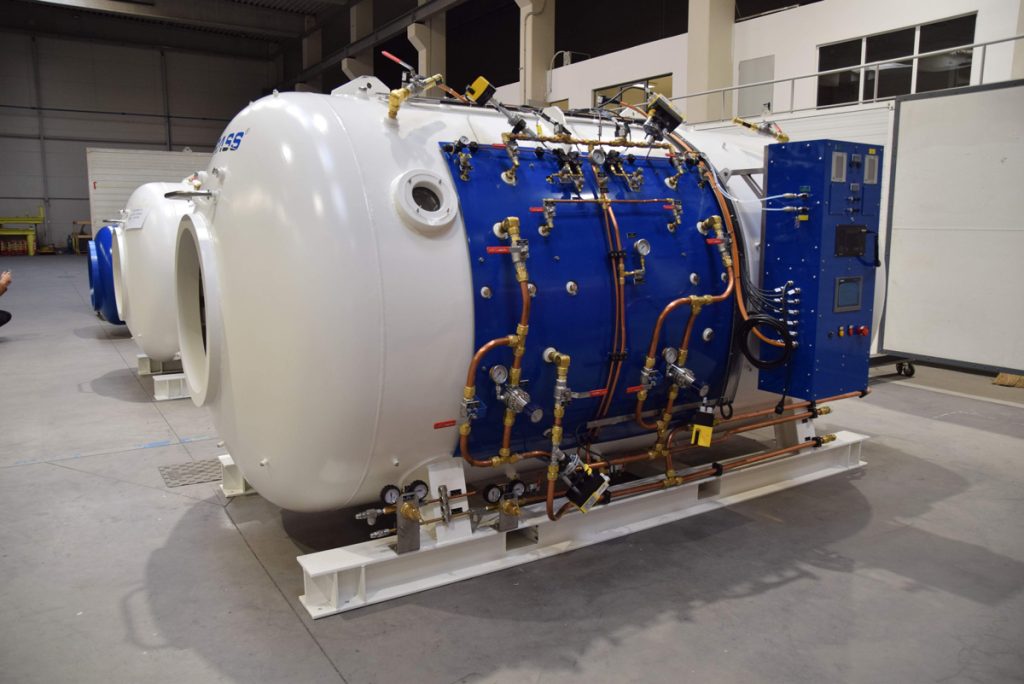

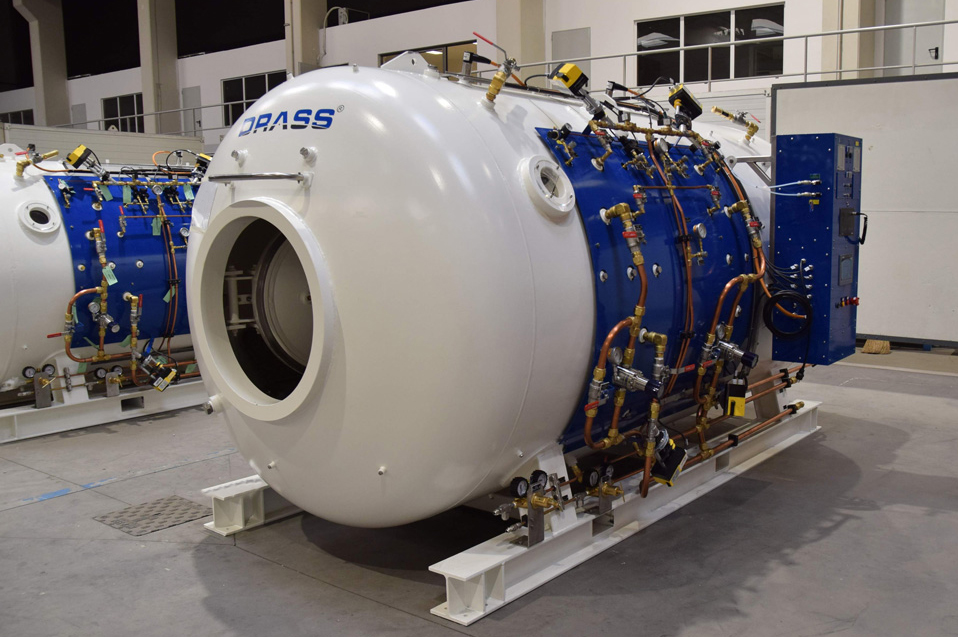

AIR DIVE CHAMBER 1600 MM PRESSURE VESSEL – FULLY EQUIPPED

Pressure vessel built with an internal diameter of 1600 mm. Can be personalized and outfitted according to client needs, ready to be delivered in 6 months.

DRASS FAIRDIVE is a cylindrical twin-lock hyperbaric chamber. The main lock chamber accommodates a maximum of six (6) seated divers, or two (2) divers on beds. The entry lock chamber comes equipped with two foldable seats accommodating up to two (2) persons to medically assist and monitor the patient(s). Built with an internal diameter of 1600 mm (or 1850 mm as optional), FAIRDIVE comes equipped with all items required for standard operation as well as a complete set of optional accessories. FAIRDIVE is specifically designed to accommodate and medically treat surface-supplied divers, permitting an immediate recompression on site at 50 msw in the event of a diving accident.

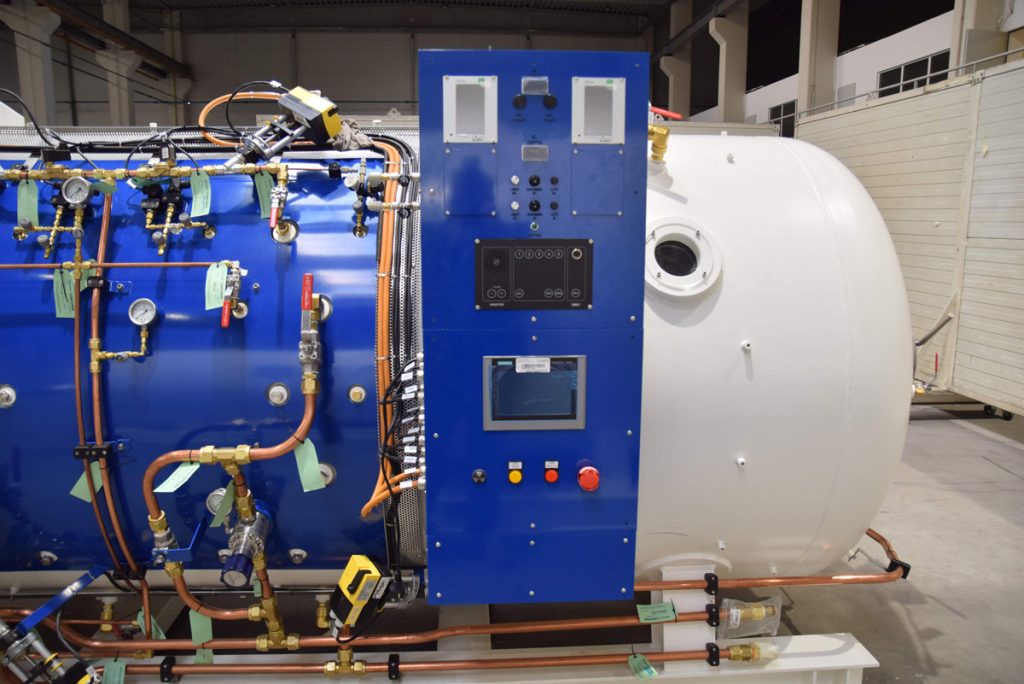

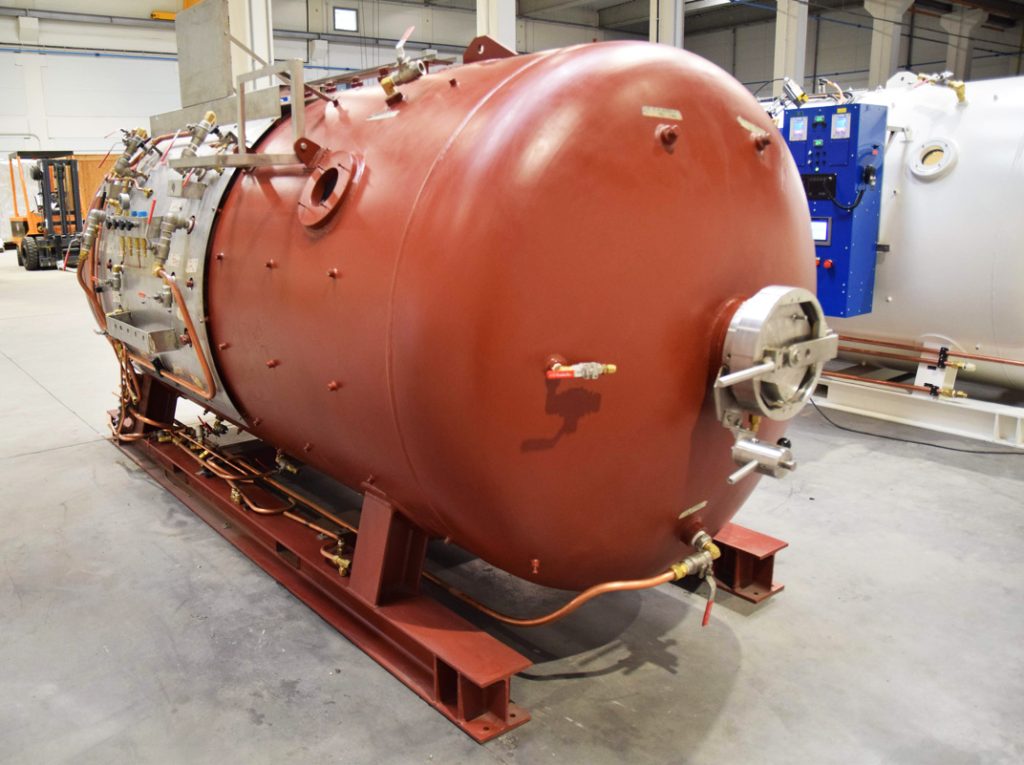

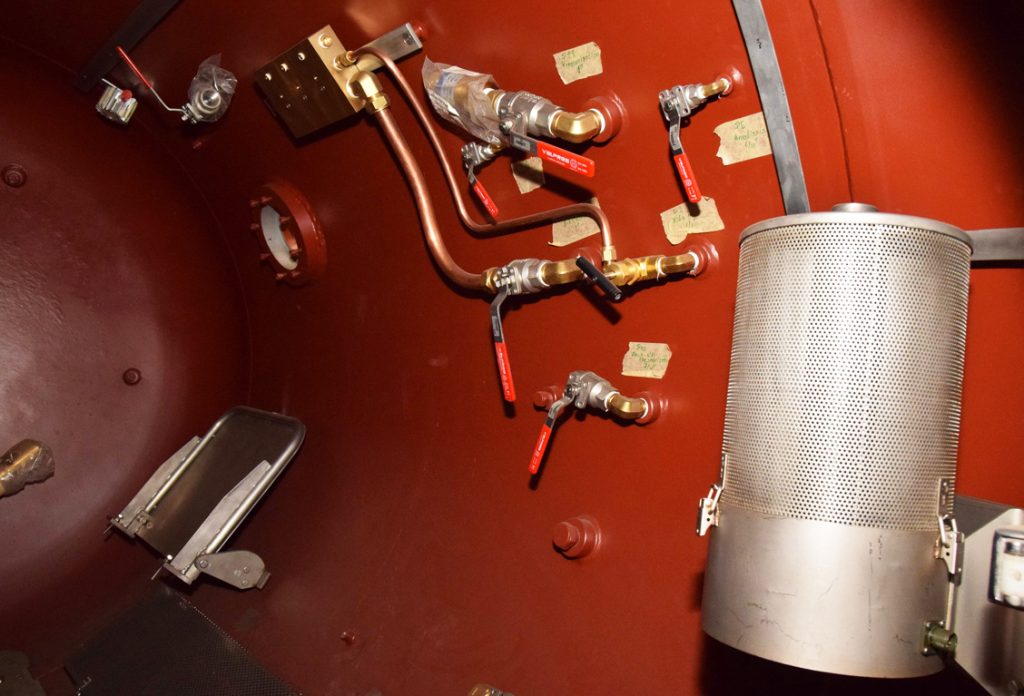

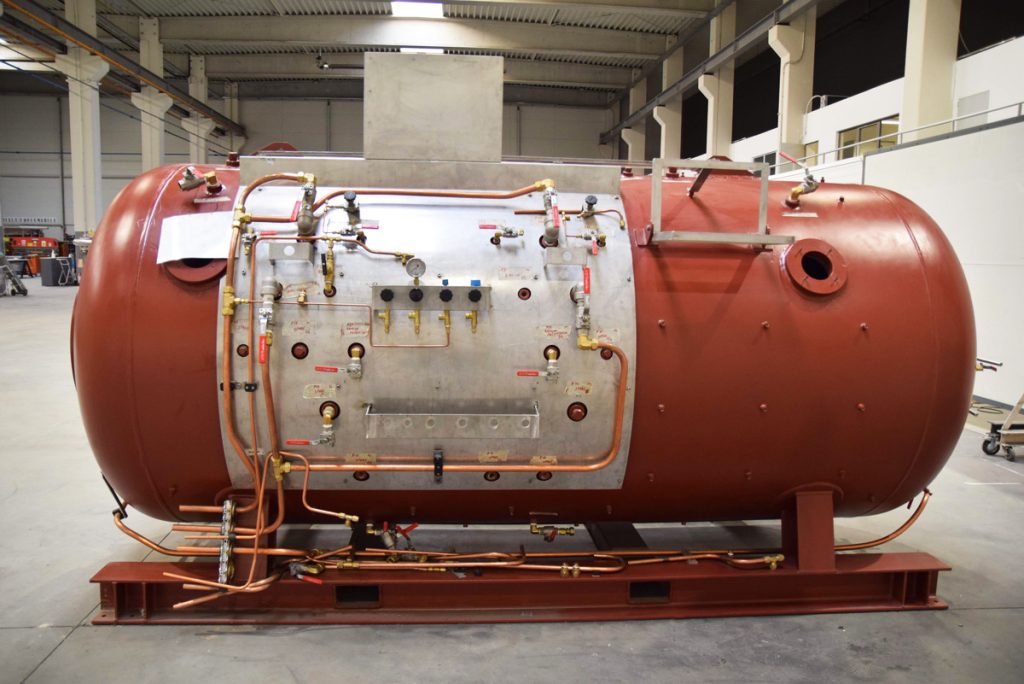

AIR DIVE CHAMBER 1600 MM PRESSURE VESSEL PARTIALLY EQUIPPED

Fully equipped pressure vessel built with an internal diameter of 1600 mm. Hydrotest to be performed. Can be personalized and outfitted according to client needs, ready to be delivered in 6 months.

DRASS FAIRDIVE is a cylindrical twin-lock hyperbaric chamber. The main lock chamber accommodates a maximum of six (6) seated divers, or two (2) divers on beds. The entry lock chamber comes equipped with two foldable seats accommodating up to two (2) persons to medically assist and monitor the patient(s). Built with an internal diameter of 1600 mm (or 1850 mm as optional), FAIRDIVE comes equipped with all items required for standard operation as well as a complete set of optional accessories. FAIRDIVE is specifically designed to accommodate and medically treat surface-supplied divers, permitting an immediate recompression on site at 50 msw in the event of a diving accident.

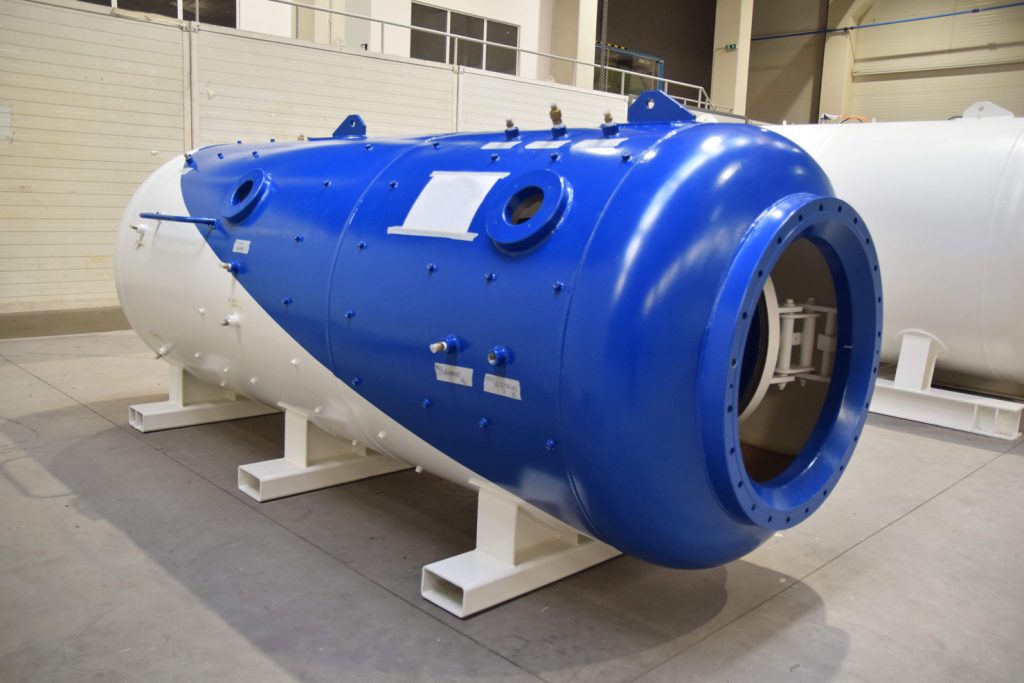

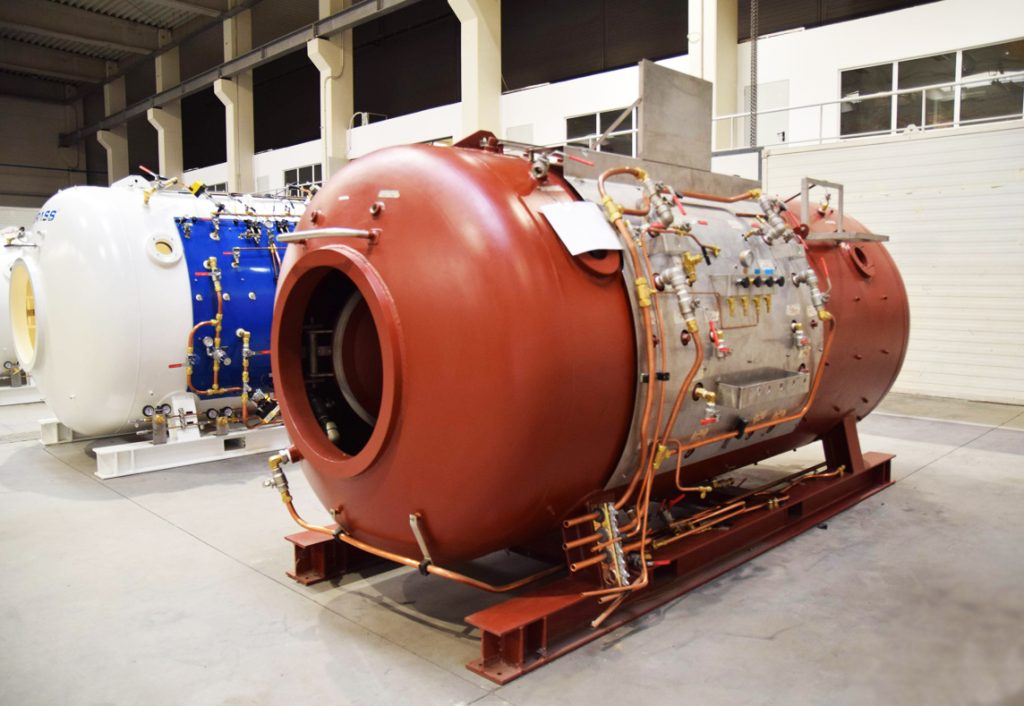

AIR DIVE CHAMBER 1850 MM COC

Pressure vessel built with an internal diameter of 1850 mm. Can be personalized and outfitted according to client needs, ready for FAT.

DRASS FAIRDIVE is a cylindrical twin-lock hyperbaric chamber. The main lock chamber accommodates a maximum of six (6) seated divers, or two (2) divers on beds. The entry lock chamber comes equipped with two foldable seats accommodating up to two (2) persons to medically assist and monitor the patient(s). Built with an internal diameter of 1600 mm (or 1850 mm as optional), FAIRDIVE comes equipped with all items required for standard operation as well as a complete set of optional accessories. FAIRDIVE is specifically designed to accommodate and medically treat surface-supplied divers, permitting an immediate recompression on site at 50 msw in the event of a diving accident.

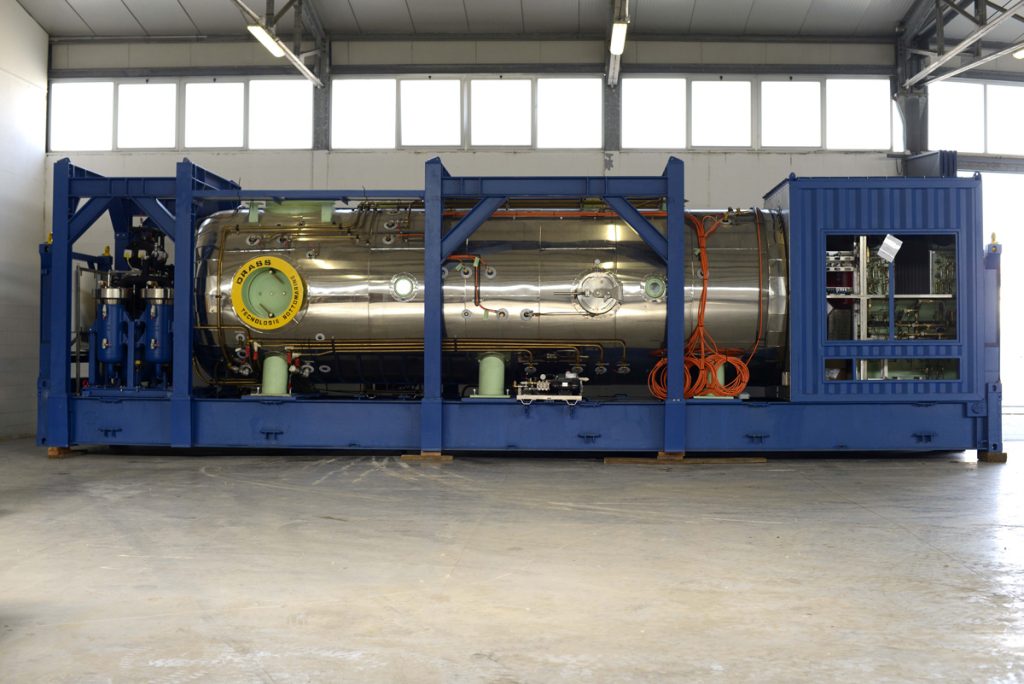

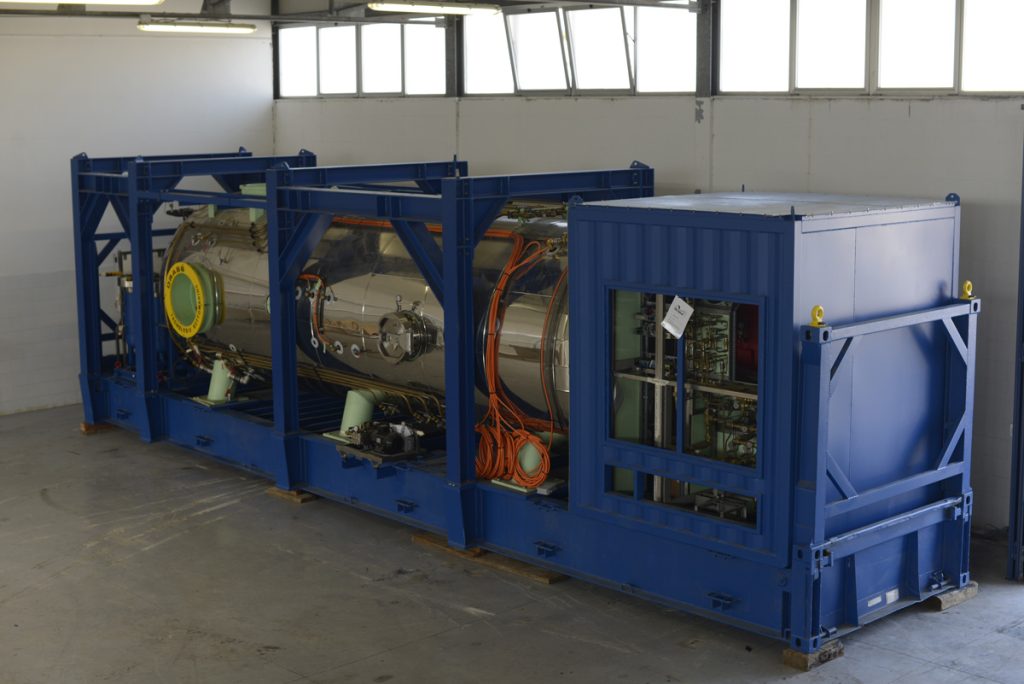

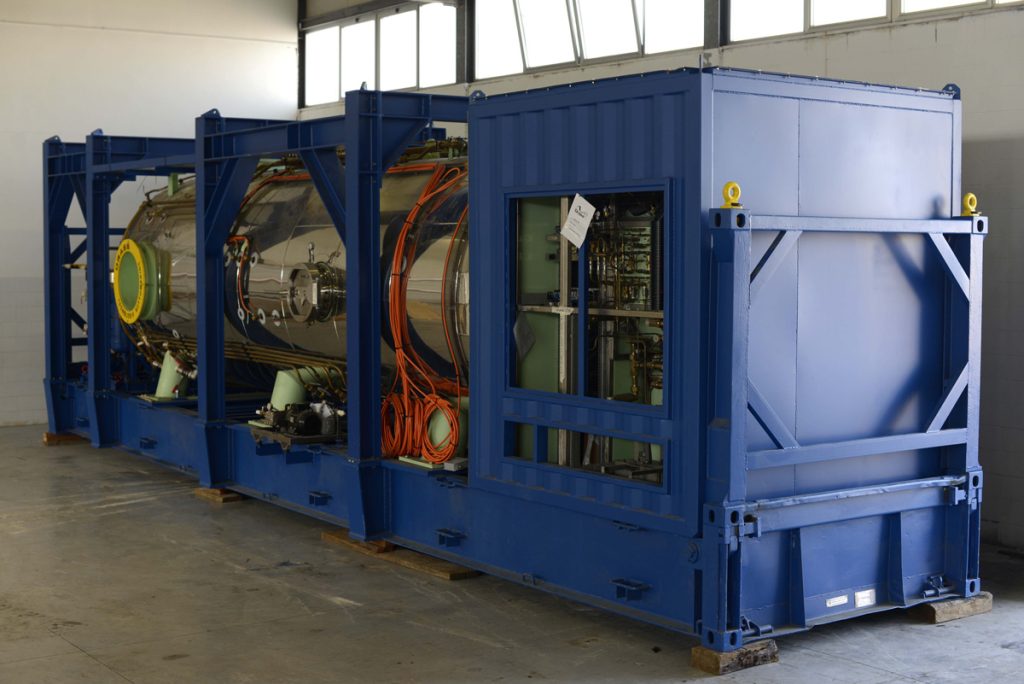

HYPERBARIC RESCUE FACILITY AVAILABLE FOR RENT AND SALE

The 900 Series Modular Hyperbaric Rescue Facility is specifically designed for easy transportation and an immediate operation on site.

Based on a 40-feet module, the HRF is suitable for road, marine and air transportation. The system is designed and built to minimize the time for mobilization and demobilization, in fact, most of all components are installed into the same flat rack, while only few components need to be positioned and connected to the rest of the system. The HRF is mainly composed of a Flat Rack plus a set of loose delivery materials.

Its design can support a wide number of Hyperbaric Evacuation Systems (HES), with both side and bottom mating.

The modules can be connected to Hyperbaric Rescue Chambers (HRCs), to Hyperbaric Lifeboats (HLBs), Diving Bells, but also to the various Submarine Rescue Vehicles.

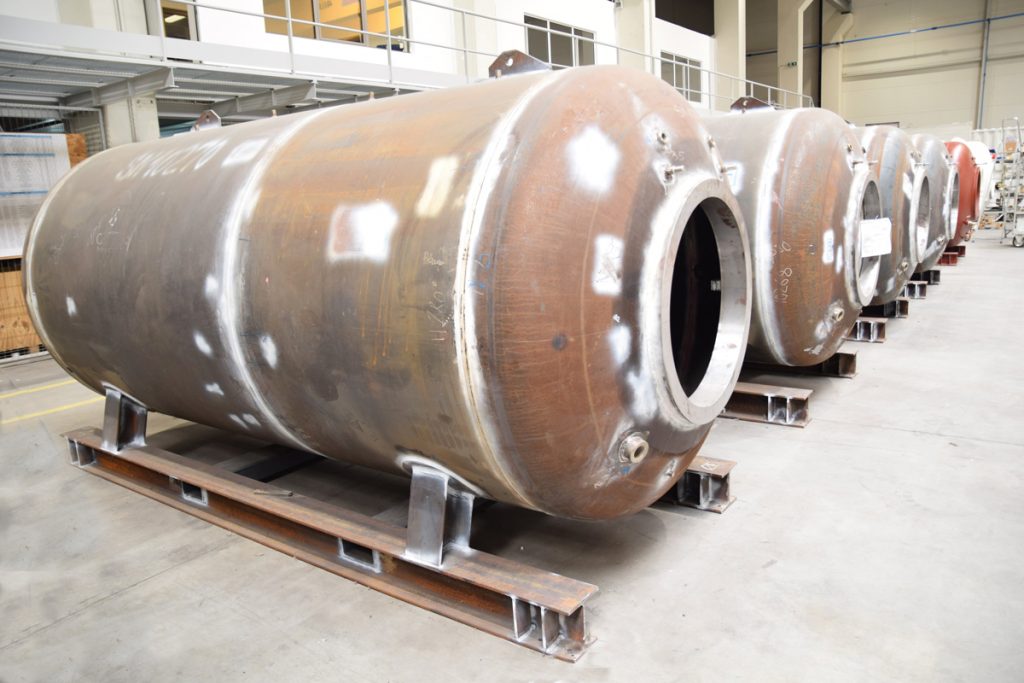

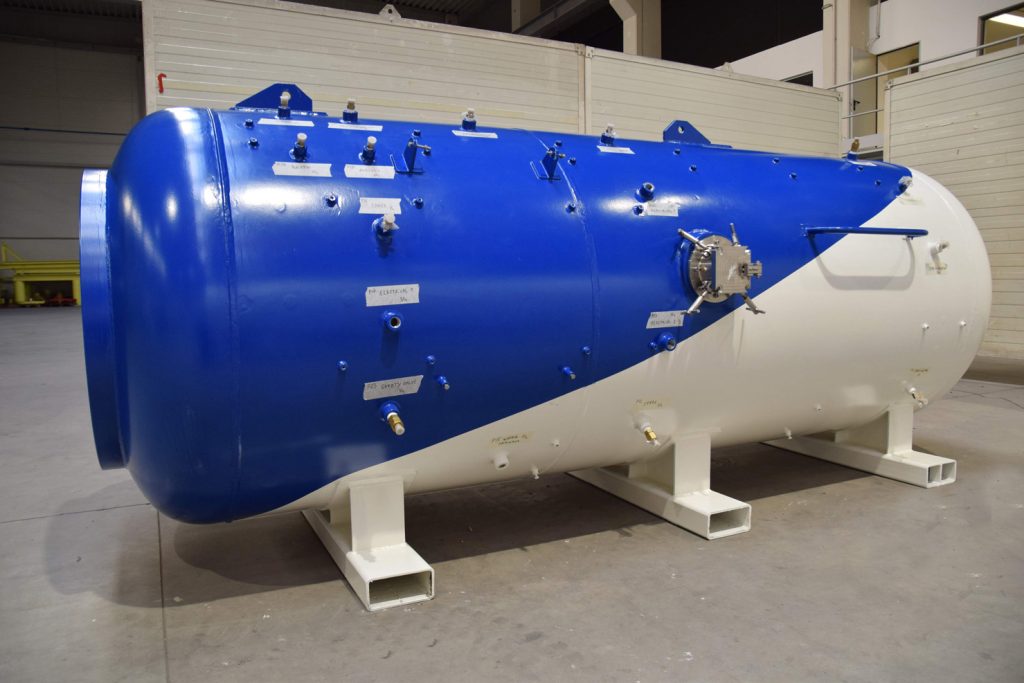

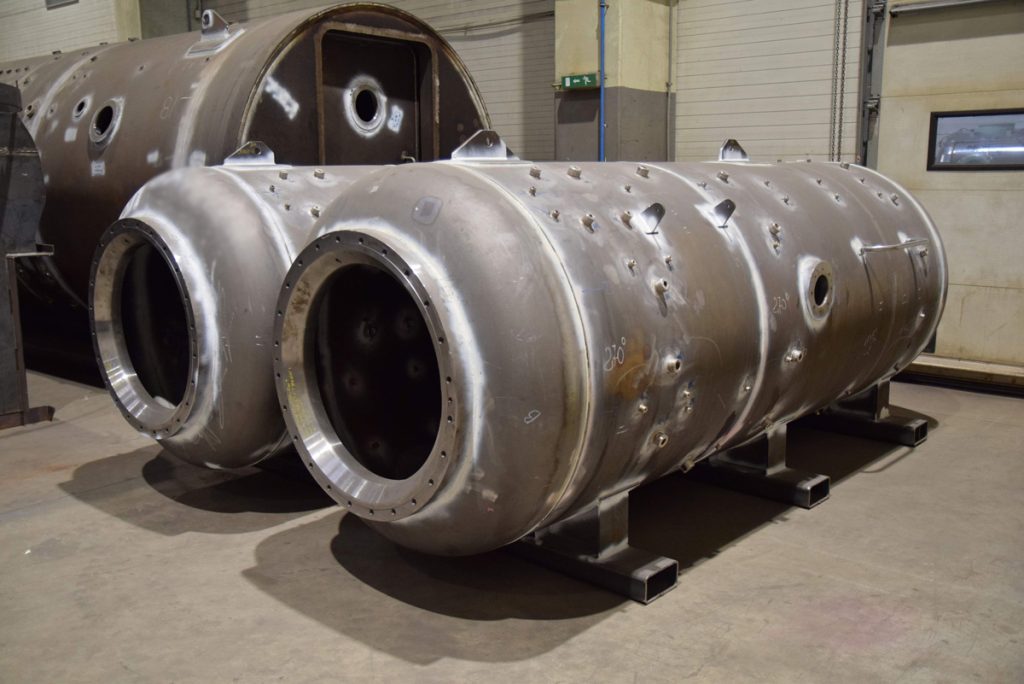

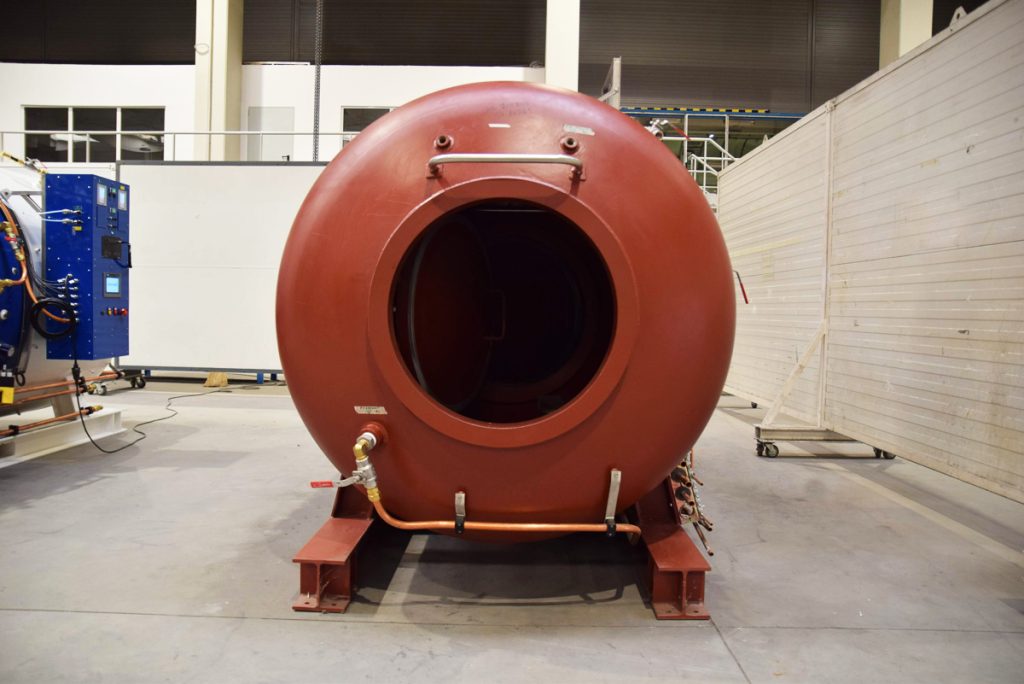

OVETTO CHAMBER PRESSURE VESSEL READY FOR HYDROTEST

Pressure Vessel built with an internal diameter of 1300 mm. Can be personalized and outfitted according to client needs, ready to be delivered in 6 months.

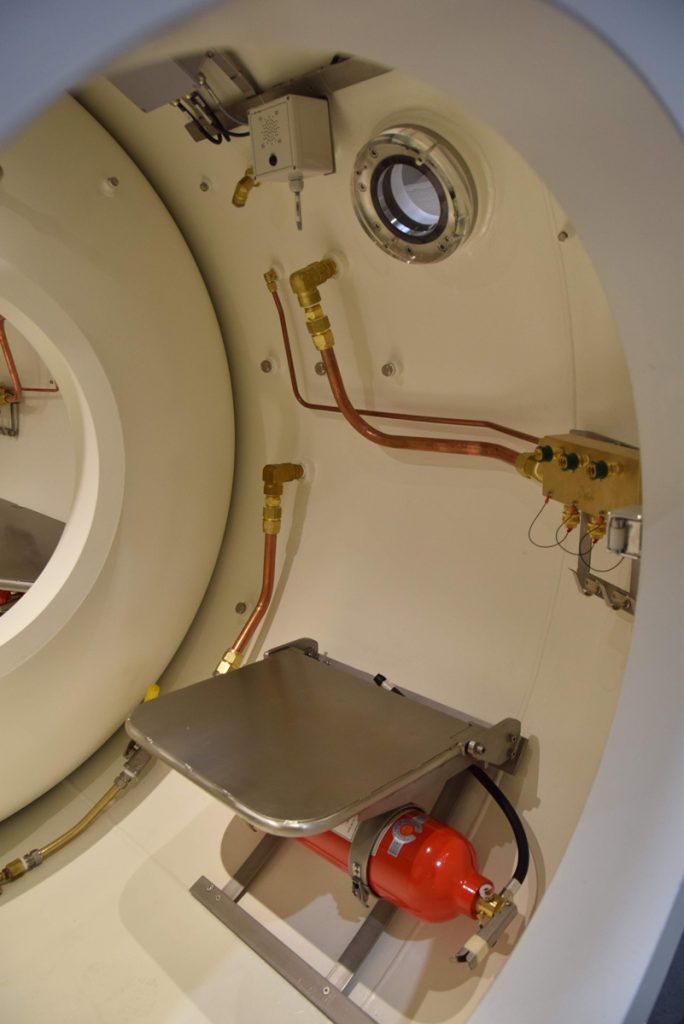

DRASS OVETTO is a cylindrical twin lock hyperbaric chamber designed for two (2) persons in the main lock: one patient on a bed plus one attendant on a foldable seat. The entry lock chamber allows the locking of one (1) person and transportation on main lock chamber. It comes with a foldable seat enabling medical assistance and monitoring of the patient. Built with an internal diameter of 1300mm, OVETTO is equipped with all items required for standard operation as well as a complete set of optional accessories. OVETTO is specifically designed to accommodate and medically treat surface-supplied divers, permitting an immediate recompression on site at 50 msw in the event of a diving accident.

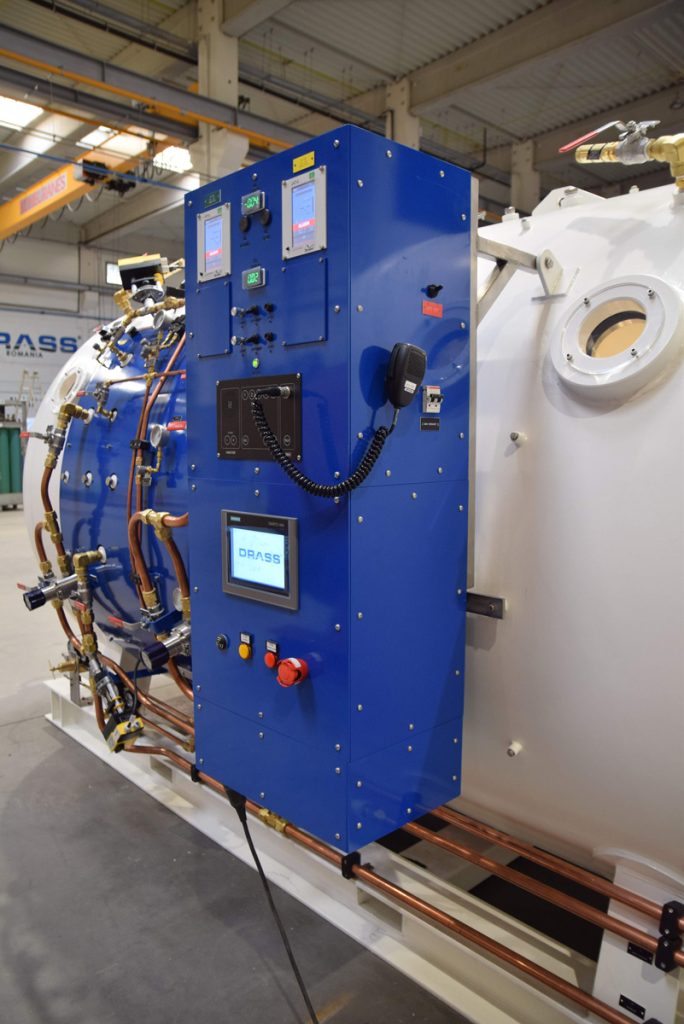

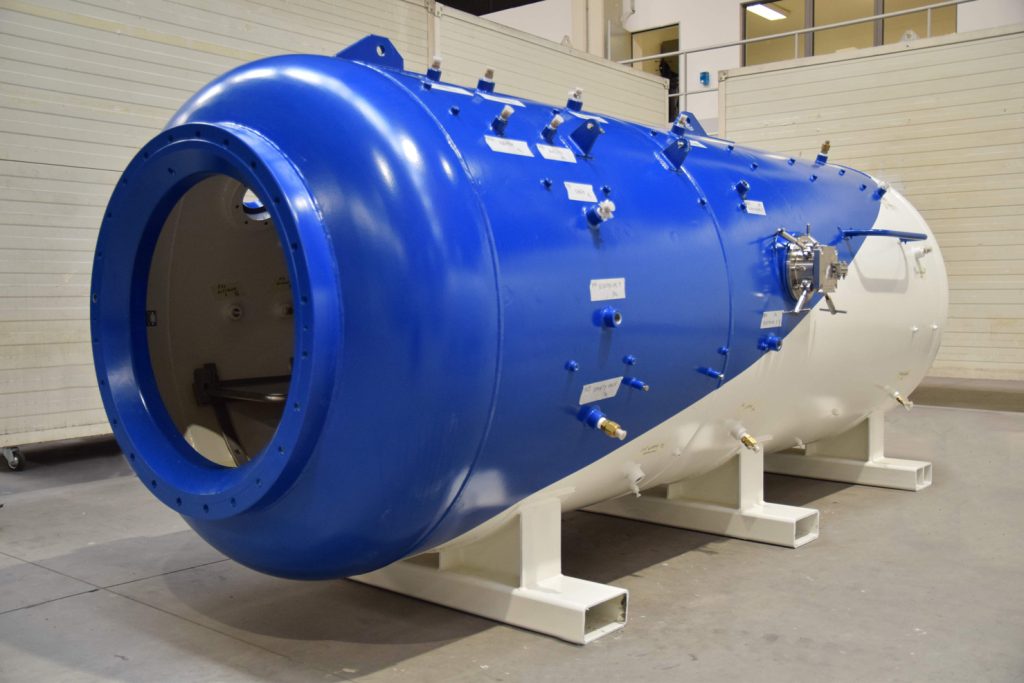

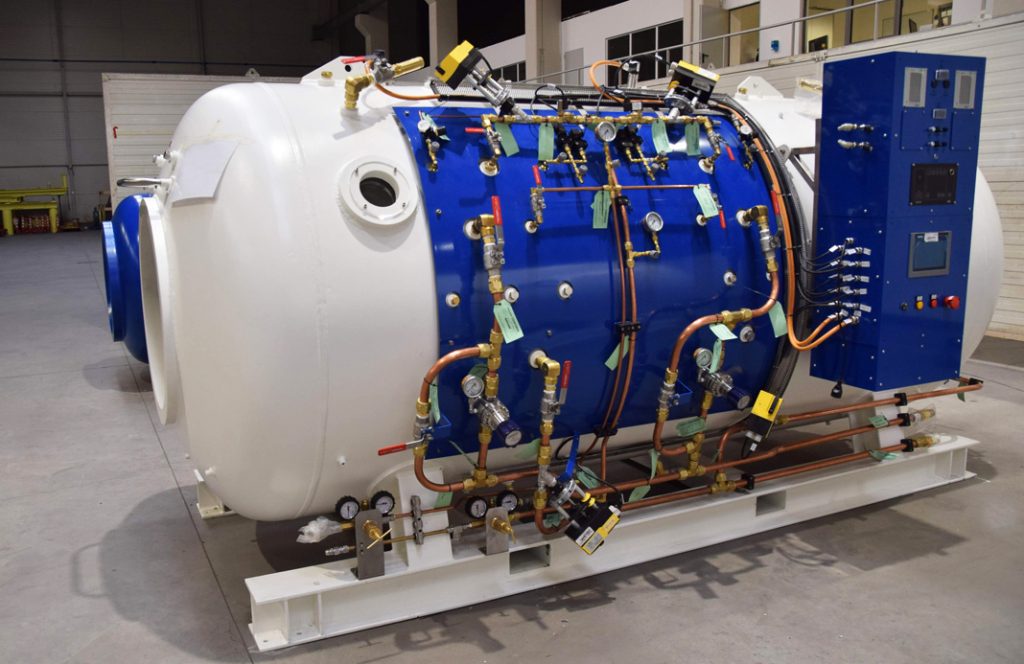

OVETTO CHAMBER WITH EASY AUTOMATION

Pressure Vessel built with an internal diameter of 1300 mm. Can be personalized and outfitted according to client needs, ready to be delivered in 6 months.

DRASS OVETTO is a cylindrical twin lock hyperbaric chamber designed for two (2) persons in the main lock: one patient on a bed plus one attendant on a foldable seat. The entry lock chamber allows the locking of one (1) person and transportation on main lock chamber. It comes with a foldable seat enabling medical assistance and monitoring of the patient. Built with an internal diameter of 1300mm, OVETTO is equipped with all items required for standard operation as well as a complete set of optional accessories. OVETTO is specifically designed to accommodate and medically treat surface-supplied divers, permitting an immediate recompression on site at 50 msw in the event of a diving accident.
