Ancillary

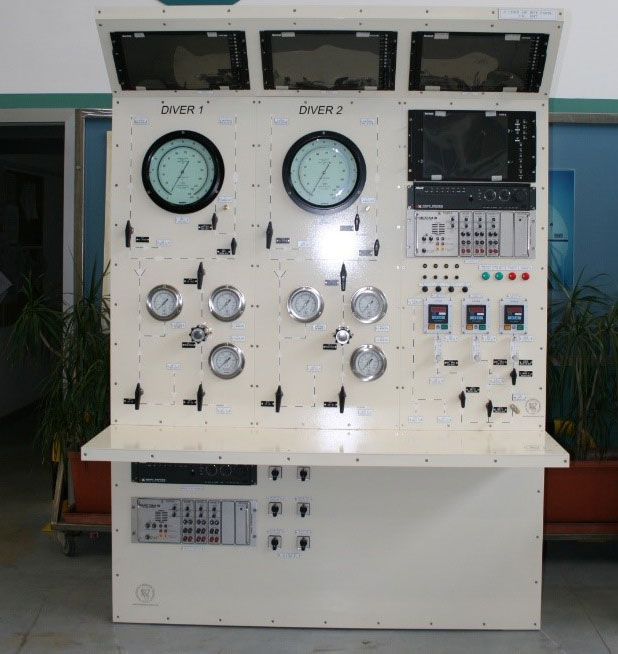

2 Diver Air Dive Panel
75SF-02-01-06-00-00


The 2 Diver Air Dive Panel provides communication, supplies gas and analysis of two Divers during diving operations.

The Panel is supplied with:

  • independent air sources (one for each diver) and an additional common line as secondary/emergency supply
  • two nitrox lines are present (only for working divers)
  • UPS in order to ensure both supply in emergency conditions

The Frame is built in Stainless Steel square tubes, the mimic is engraved into the aluminum and painted in different colors according to the circuits. Sampling and Calibration points are available.

This Panel is available also with video module option: with the 3 Additional monitors, the panel is provided with a total of four (4) CCTV Monitors. One monitor shown each diver CCTV camera, while the other monitors can be used to display additional CCTV camera (ROV, crane, etc.)

It is available a portable configuration with the main functionalities of the standard panel:

  • independent air sources (one for each diver)
  • depth monitoring (one for each diver)
  • analysis
  • communication system
  • divers light control

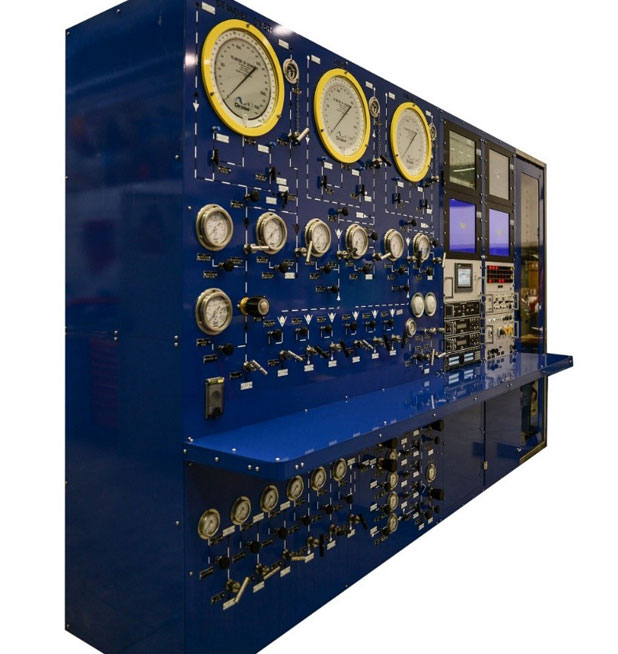

3 Diver Air Dive Panel
75SF-02-01-05-00-00


The 3 Diver Air Dive Panel provides communication, supplies gas and analysis of three Divers during diving operations.

The Panel is supplied with:

  • independent air sources (one for each diver) and an additional common line as secondary/emergency supply
  • three nitrox lines are present (only for working divers)
  • UPS in order to ensure both supply in emergency conditions

The Frame is built in Stainless Steel square tubes, the mimic is engraved into the aluminum and painted in different colors according to the circuits. Sampling and Calibration points are available.

This Panel is available also with video module option: with the 3 Additional monitors, the panel is provided with a total of four (4) CCTV Monitors. One monitor shown each diver CCTV camera, while the other monitors can be used to display additional CCTV camera (ROV, crane, etc.)



It is available a portable configuration with the main functionalities of the standard panel:

  • independent air sources (one for each diver)
  • depth monitoring (one for each diver)
  • analysis
  • communication system
  • divers light control

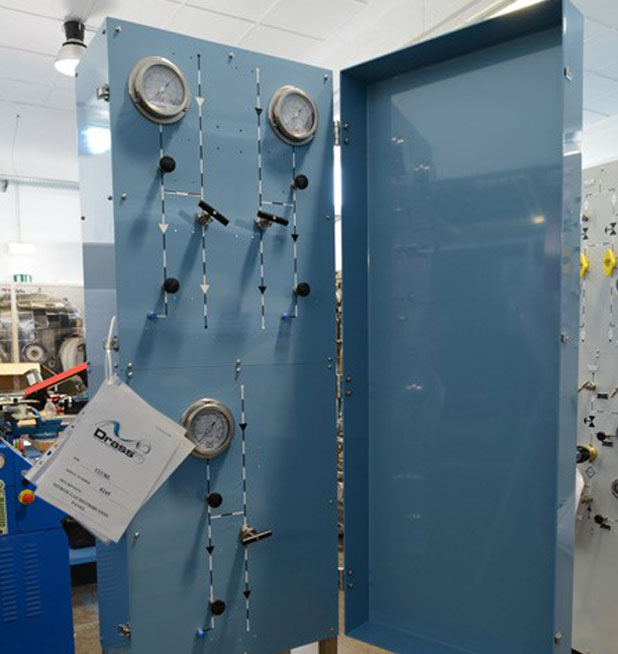

Nitrox Gas Distribution Panel
94CP-01-09-00-00-00


The Nitrox Distribution Panel is used to supply the Nitrox mixes to the 3 Diver Air/Nitrox Panel.

The Nitrox is supplied at 40 bar by the Nitrox quads installed near the panel.

 Three difference mixes can be managed in the same time.UPS in order to ensure both supply in emergency condition.

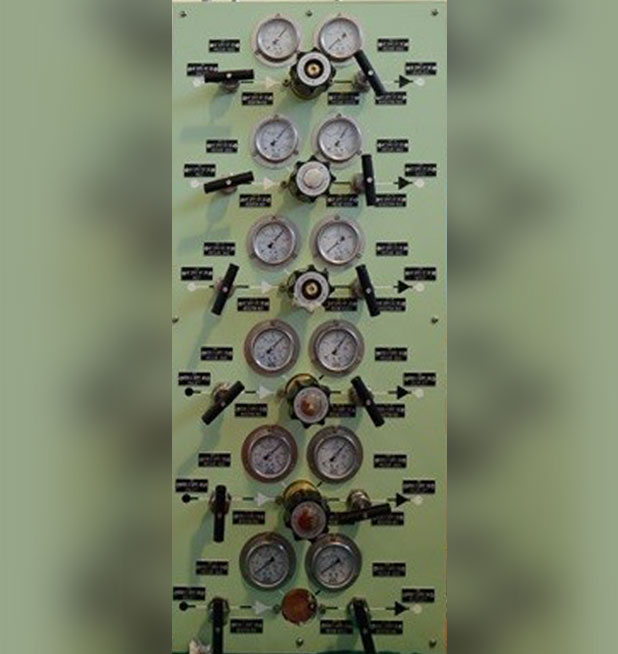

Air+Nitrox Gas Pressure Reduction Panel
94CP-01-14-00-00-00


The Air+Nitrox Gas Pressure Reduction Panel permit to reduce the HP Air (200 bar) up to 25 bar and the Nitrox HP (40 bar) up to 25 bar. The main scope of this panel is to regulate the Air Dive system gases pressure at the desired value.

Three independent air lines and three independent nitrox line are managed in this panel.
